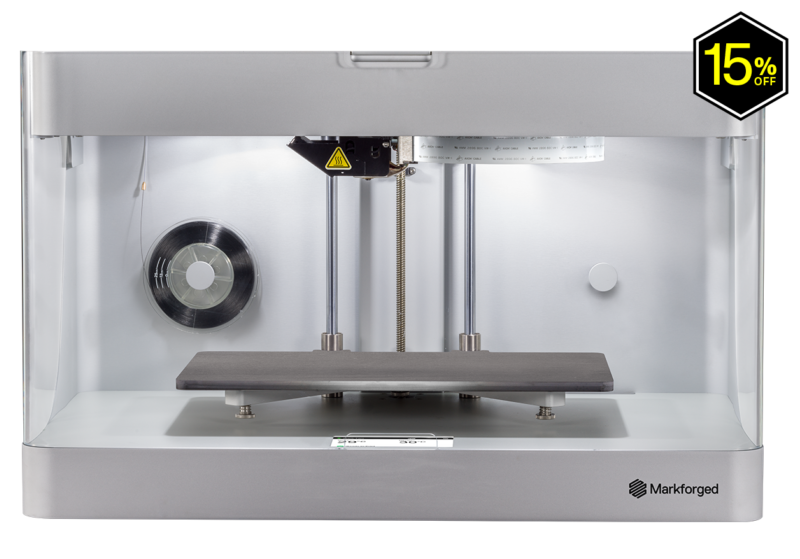

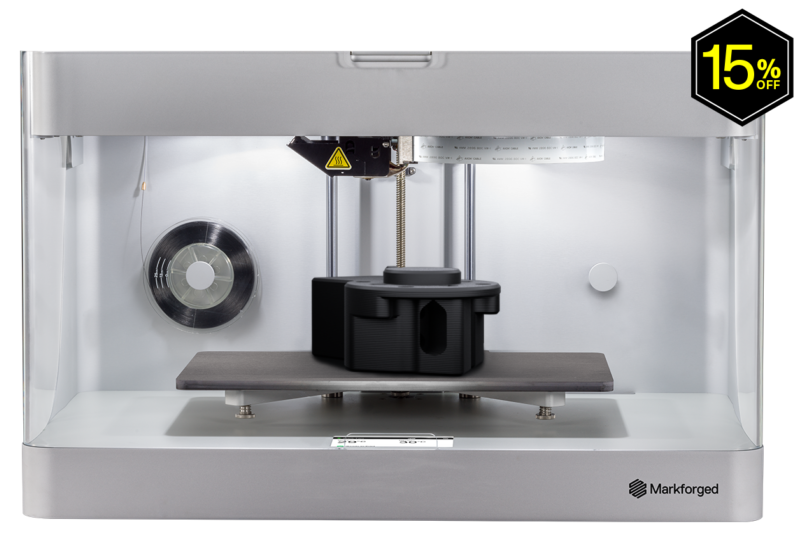

Mark Two™
Flagship Continuous Fiber Composite 3D Printer, built to revolutionize your manufacturing operation.
Request a Quote
A leading way to make aluminum-strength parts on your desktop — the Mark Two carbon fiber composite 3D printer enables engineers to generate massive value for their business.
Carbon Fiber Strength
Print Continuous Carbon Fiber reinforced parts on your desktop – stiff, strong, extremely durable, and capable of replacing machined aluminum.
Built to Last
A unibody aluminum chassis and precision-machined components deliver lights-out reliability over thousands of print hours.
Precise and Beautiful Parts
Print precise parts with best-in-class surface finish thanks to Onyx, Markforged’s extremely versatile micro carbon fiber filled nylon material.
Specs
Physical Dimensions
| Width | 584 mm |
| Depth | 330 mm |
| Height | 355 mm |
| Weight | 16 kg / 35 lbs |
Build Volume
| Width | 320 mm |
| Depth | 132 mm |
| Height | 154 mm |
Printer primary Specs
- Printing Process
- Continuous Fiber Reinforcement (CFR)
- Z Layer Resolution
- 100 μm - 200 μm
- Printing Media
- Composite Base Filaments, Continuous Fibers
- Internal Part Geometry
- Closed Cell Infill with Continuous Fiber Reinforcement
- Print Bed
- Precision Ground Composite
Materials
Compatible Materials
System Details
About the Mark Two
The Mark Two is the award winning professional carbon fiber composite 3D printer – built around the Continuous Fiber Reinforcement (CFR) process to reliably produce strong parts for you. It’s built around an aluminum unibody frame that delivers high accuracy and repeatability. A hardened extrusion system enables the Mark Two to print Onyx — a micro carbon fiber filled nylon filament that destroys traditional extrusion systems — reliably over thousands of print hours. The machine is built to be easy to operate and maintain — from easy-to-reach wear components (like nozzles and feed tubes) to usability focused features like the print bed, which can be removed and replaced with 10 μm repeatability.
In addition to more common FFF features, the Mark Two has a 2nd-generation fiber reinforcement system that enables you to lay down continuous fiber into parts. Markforged composite printers are capable of printing continuous fiber reinforced parts, which can be as strong as machined aluminum.
Materials
Print beautiful Onyx parts reinforced with Markforged's full range of Continuous Fibers.
-
Onyx™
Micro carbon fiber filled nylon offers excellent heat resistance, surface finish, and chemical resistance.
Carbon Fiber
Stiff, strong, and extremely light, carbon fiber reinforcement yields parts capable of replacing machined aluminum.
Smooth TPU 95A
Smooth TPU 95A is a rubber-like material that when used with Markforged composite printers offers product developers and manufacturers the ability to create flexible, impact-absorbent parts on demand.
Aramid Fiber (Kevlar®)
Extremely durable and highly resistant to catastrophic failure, Kevlar® is an excellent reinforcement choice for harsh environments.
HSHT Fiberglass
HSHT fiberglass material delivers the highest impact resistance and heat deflection temperature of our continuous fibers, and can be used for low-temp molds.
Fiberglass
Inexpensive and 11 times stiffer than ABS, Fiberglass is the perfect entry-level Continous Fiber for 3D printing functional parts.
Nylon
Smooth, white, non-abrasive, and easily painted nylon thermoplastic best used for non-marring workholding and human contact.
Precise PLA
Affordable prototyping plastic, available in 8 different colors, engineered to print reliably and accurately.
The power of Continuous Carbon Fiber at your fingertips.
Software
3D Printing Software Meets Production Management
Design your part, upload it into our browser-based software, select from a wide range of Composite Base materials and Continuous Fibers, and hit print. It's that simple.
