Turret Lathe's Mark One paid for itself in less than 14 parts and cut lead time from weeks to hours.
Machine Shop - Aluminum
Printed on Markforged
Cost
$3,101.91
$63.85 (material)
Time
72-120 hours + shipping time
60 hours
50x
Layer Height
50x
Layer Height
The Need for Speed

For over 40 years, Turret Lathe Specialists, Inc has been churning out customer parts, be they one-off prototypes or larger production runs by leveraging their wide range of capabilities from high quality manual machining to CNC precision operations. Juggling orders and batch lead times, Quality Manager Daniel Shepherd is always under pressure to design and implement more efficient solutions: “The capabilities we have — with the conventional milling and turning we can offer — allow us to do short production runs. Because that’s something we excel at, our customers started giving us some of their one to two piece rapid prototyping jobs.” The company needed to find a way to fulfill these orders without burdening their larger production runs.

One of Shepherd’s recent projects has involved fitting a carburetor on a 2.0L four cylinder engine and putting it all into a 1978 Volkswagen Rabbit, a car usually used for period-accurate racing. Shepherd needed a manifold to connect the engine to the carburetor, but the manifold he needed was impossible to get new. “Any versions of that part you would find today, the casting was one of the last made, you could tell the mold was blown out, and it probably shouldn’t be turning out parts anymore,” as Shepherd described. He challenged himself to make “not only an available manifold, but one that was lighter weight, more effective in terms of flow and fit, and simply one that’s more affordable.” After some initial design and prototyping, the design proved to be prohibitively expensive to manufacture. With runners in the manifold machined from solid aluminum, the manufacturing price was nearing $2000, ten times the price for used manifolds on the market.

Shifting Gears

Since they had started receiving smaller orders, Turret Lathe Specialists faced some challenges meeting their customers’ lead times. “Trying to fit [one piece orders] in between other jobs on the schedule was proving to be a nightmare, to say the least,” Shepherd described. When Shepherd and his boss discussed how 3D printing could complement the machine shop, they realized how it could speed up their production runs: “The thing that really drove home the capability of 3D printing and how it could work in our work flow at the shop really had to do with our time management... to essentially have a robot working on a part when all of our valuable machinists are busy plugging away on more important work out in the shop.”

Then it was just a matter of selecting a printer. “What we needed in a printer was something that fit on a desk, that didn’t cost as much as a huge industrial machine, and that turned out precision parts...Markforged was able to deliver on that,” Shepherd explained. The fiber-reinforced capabilities of the Markforged 3D printer only solidified the deal: “The realization that we could turn out a part made of nylon with a few layers of composite fiber in between, and have it stand up to the same needs and abuses that we’d put aluminum parts through was really the thing that sealed the deal with top management for our Markforged printer.” Turret Lathe no longer needed to interrupt long product runs to make single parts; the Markforged could match the strength and precision of their best machines by 3D printing end use products or prototypes.

“The only shortcoming I can think of is that we don’t have more desk space for a Mark Two.”
Pedal to the Metal

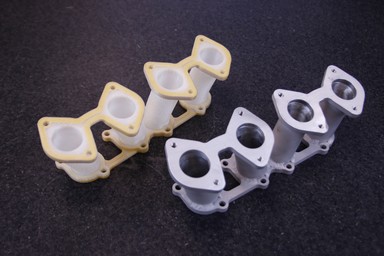

The 3D printed runners next to their machined counterparts.
A comparison of the Markforged 3D printed parts and the machined aluminum parts.

With Turret Lathe’s recently purchased Markforged 3D Printer, Shepherd could prototype and iterate upon his manifold design without needing to expend manufacturing cost and time at the company: “I began with my initial design in Solidworks and made it exactly as I wanted it — each stage was printed easily and accurately overnight during dead time between other jobs. It meets the needs of a fit prototype perfectly.” While he wanted the final part to be fabricated out of metal, the initial prototype exposed necessary revisions. He cut out the complex, 3D curvature of the runners to make them out of straight stock tubing, using the The Mark One once again, this time used to make cutting templates for the runners: “These templates allowed me to quickly and accurately cut the runners to size without having to spend time setting up a machine,” he described. With no machinery capable of cutting the necessary angles without an arduous tooling setup, the Mark One allowed Shepherd to iterate upon his designs easily and bring the fabrication cost down to $117. “It was really easy to make a prototype based on the old manifold...the design cleaned up and optimized for weight, for performance, for ease of manufacturing,” Shepherd explained. “The runners came out beautifully. Most importantly, the templates kept them flat and as-designed. All that’s left is to configure a jig and the finished product will be welded and finished.”

The printer’s success has expanded to other projects at the company as well, vastly simplifying manufacturing processes left and right with the 3D printing precision of the Mark One. “A lot of the template and fitting tools that we used to make out of aluminum, that we can now make out of nylon and Kevlar, nylon and carbon fiber on the Markforged printer, they match the quality of the old aluminum tools with no question,” Shepherd elaborated. “Knowing that we’re saving on time and money, that just sweetens the deal.” The production efficiency at Turret Lathe Inc. has vastly increased with the Mark One, and Shepherd is interested to see how it could improve the company’s workflow even more: “I continue to be impressed with every part that comes off the Markforged printer. Having a tool like this allows us to solve problems in ways we never thought possible...Once we all catch up and learn how to implement the Markforged printer to its full potential, I don’t doubt that our shop will be happily reaping the countless benefits it offers.”
