Dixon Valve & Coupling uses the Mark Two to 3D print custom jaws for industrial robotic arms on their factory floor.
CNC Machining Service
Printed on Markforged
Cost
$290.35
$9.06
Time
72 hours + shipping time
9 hours, 20 minutes
50x
Layer Height
50x
Layer Height

Getting a Grip

An industrial FANUC robotic arm gracefully swings from one automated machining center to another with a pipe fitting firmly gripped between its jaws. At Dixon Valve’s US manufacturing facility in Chestertown, Maryland, these robotic arms are commonplace in production line cells, used for part transfers in the manufacturing process. Strength, safety, and chemical resistance are key components to Dixon Valve’s efficient work environment, and as such attached to the arm of each robot is a set of Onyx jaws, printed on the Mark Two industrial strength 3D printer.

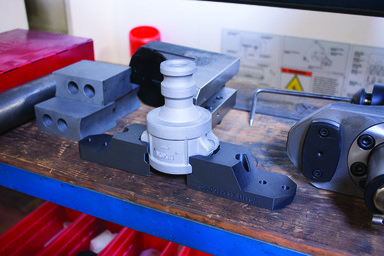

A two jaw gripper set for a pipe fitting.

“Dixon Valve is a manufacturer of fittings for fluid transfer industries,” Max de Arriz, Manufacturing Engineer at the company, explained. “We’re using a large robotic arm to transfer many styles of our parts between two vertical turning centers.” With the thousands of different valves, fittings, and gauges that the company manufactures, each product line setup requires custom equipment, including tooling and grips to hold specific parts efficiently. De Arriz, along with Automation Technician J.R.Everett, reap the benefits of their Mark Two in Dixon’s production facility.

“With Onyx we were able to re-tool a robotic arm in a manufacturing cell in under 24 hours.”

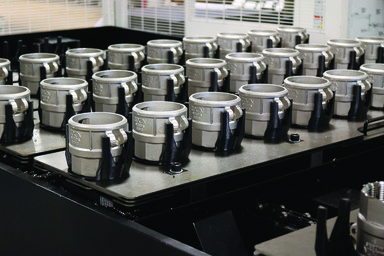

Dixon Valve pipe fittings in the factory aligned with 3D printed fixtures.

Within Arm’s Reach

“Prior to using 3D printed jaws in the cell, we were machining each tool individually, and it would take a fairly large amount of time,” de Arriz explained. Every gripping tool needed to be either outsourced to an external machine shop or machined in house with the manufacturing capabilities at hand. Either way, manufacturing parts as critical as production line grippers was getting time consuming. As Dixon primarily produces valves and fittings, these grippers also require strength and chemical resistance, as well as wear resistance from repeated use. “To that end, we utilize the Markforged parts as our transfer gripping system,” de Arriz concluded.

As soon as Dixon Valve unboxed their industrial strength Markforged 3D printer, they put it to work. “We were able to re-tool a robotic arm in a manufacturing cell in under 24 hours,” Everett exclaimed. The Mark Two not only allowed for the production of their robotic jaws quickly, but the material capabilities of the printer, including its ability to lay continuous strands of high-strength fibers into 3D printed parts, ensured reliability in a factory setting. “Onyx is one of my favorite materials because it combines stronger composite material with the chemical resistivity of nylon,” elaborated Everett, referring to Markforged’s chopped carbon fiber nylon filament. “It hits the sweet spot for us in chemical resistance and strength.”

“Onyx is one of my favorite materials because it combines stronger composite material with the chemical resistivity of nylon. It hits the sweet spot for us in chemical resistance and strength.”

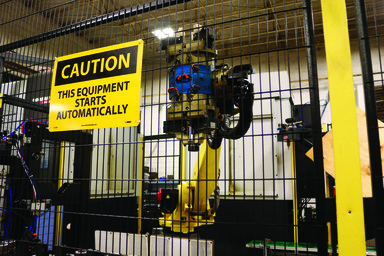

A robotic arm with 3D printed grippers working on the Dixon Valve factory floor. A new set of jaws can be made on the Mark Two in less than a day.

Hand in Hand

The Mark Two enabled Dixon Valve to produce new manufacturing solutions at unprecedented speed and cost, providing the company with a powerful new tool in their toolbox. “It’s a critical component in our design process and it is really changing the way we work to the point where we are actually altering our procedures and plans to accommodate this groundbreaking product,” says Everett. By incorporating the printer into the company’s workflow, Dixon Valve was able to expand and improve even further, and they don’t plan to stop there. The ability to produce parts with esteemed strength, quality, and precision at a low cost gives Everett high hopes for Dixon’s path forward: “If I had to tell somebody on the street what’s great about this product, or what is great about Onyx, or what the coolest thing is to get out of it, I’d say it’s your imagination. If you can think of it, you can create it.”

“If I had to tell somebody on the street what’s great about this product, or what is great about Onyx, or what the coolest thing is to get out of it, I’d say its’ your imagination. If you can think of it, you can create it.”

Watch Dixon Valve's customer success story here:
