Searching for Solutions
When it comes to 3D printing, one often doesn’t think too hard about the chemical properties the materials contain. While the MarkForged printer is most well known for the material strength of its parts, two engineers at Whitford Worldwide discovered that the unique chemical properties of MarkForged’s high quality nylon filament provides reliability in the face of harsh chemical solvents.
Whitford Worldwide manufactures specialty coatings, with products ranging from non-stick coatings for pots and pans to non-corrosive layers for industrial parts. Under the same roof is Polymeric Systems, owned by Whitford, and manufacturer of epoxy sealants and adhesives. Jon Fetzer and Bobby Colmery work as process engineers to identify spots for potential improvement around the company’s manufacturing floor. Primarily responsible for process, safety, and ergonomic improvements, they’re always on the lookout for ways to improve the fabrication methods for both companies to cut down on time and money.
In both companies’ product lines, many of the components during manufacturing need to be robust and resistant to the solvents used in the fabrication process. This limits the materials that can be used in the process as some materials will erode in the harsh chemical environment. As a result, unique parts on their machines are usually outsourced to a shop to be custom machined. Because of the material properties of the parts, and to ensure part precision, complicated parts can end up being thousands of dollars. It is up to Fetzer and Colmery to find workarounds to these types of problems.
Finding a Method that Sticks

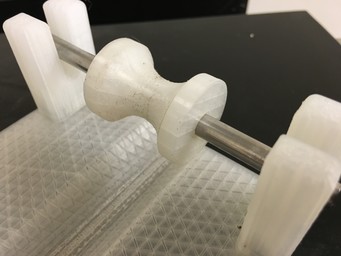

One of the processes Fetzer and Colmery had been working on was improving the technique for wrapping extruded epoxy in plastic film, a method at Polymeric Systems that “has always been a big problem, and takes a little bit of black magic to get it to wrap to a satisfactory level”. The team explained that they went down several avenues to solve the problem, and ended up with an idea for a 3D printed wrapper. However, due to a design change, they had to scrap that idea and start over. “We tried several iterations of that and couldn’t figure out how to get it to work reliably,” Fetzer explained. “We went to a new design, switched gears, and thought 3D printing was out”. The team then arrived at a concept for a film rolling apparatus to guide the film around the epoxy extrusion. They sent the design to be machined by a third party machining resource and got back a quote of around $2000. They knew they would have to go through multiple iterations to perfect the design, so they had to pursue a different manufacturing option: “After receiving a quote for $2000 from a machine shop to fabricate the apparatus, we determined that price was too steep for another imperfect design that will no doubt need more changing. We really loved the concept of 3D printing and thought ‘man, wouldn’t it be awesome if we had one of our own? We could do all this testing and tweaking in house.’”
The two process engineers laid out four essential criteria that needed to be met to justify the purchase a 3D printer. The printer needed to be cost effective and user friendly, it needed to print functional parts, and its material needed to be solvent resistant. “We looked into all types of printers; from $800 desktop printers to $140,000 industrial strength printers”, says Fetzer. After selecting a few potential printers with the necessary capabilities, they started looking at materials. They received material samples from a few different vendors, including Markforged, and placed them in some of their harshest chemical solvents. “We went through the process of elimination of materials”, Fetzer explains, “Some of them completely dissolved...we tested the [MarkForged] nylon and that eliminated all the other printers, really. It was the only one that held up to all the criteria that we had...the nylon went through a 26 hour bath in a really harsh solvent and it still looked beautiful”. The chemically resistant 3D printing solution they found was in the engineering-strength nylon of the Mark One.
Sealing the Deal
Once Fetzer and Colmery had narrowed their options down to the Mark One, the next challenge was convincing management that the purchase would be worth it. Many of the machines at the company are decades old and get the job done. A 3D printer would be the most modern piece of equipment at the company, but nobody was familiar with its benefits. “The whole 3D printing concept was foreign to us until we started looking into it,” Fetzer described, “we had to sell the concept first, before buying it.” Everyone in management agreed that the roller assembly was vital to the epoxy manufacturing process, and that they needed to make it somehow.
With the Mark One priced at about $5,500, and a single machined roller at $2,000, it was an easy sell. “When they saw the cost of that and the cost of the Mark One, we found other items we could invest in, and that pretty much sold it right there...”, Colmery explained, “it was the cost itself, and that we no longer needed to rely on suppliers for some of our other parts.” With the Markforged printer, both Whitford and Polymeric Systems could manufacture and prototype many chemically resistant parts at a fraction of the price it would take to get them made elsewhere. The team explained that cost of machined prototypes created for the film roller would have definitely exceeded the cost of the Mark One: “The Markforged has pretty much paid for itself...the amount of iterations we made with that film wrapper, I don’t even know how much that would have cost. We definitely saved a lot of money.”
Upon receiving their Mark One, the pair immediately set it up: “we were printing something within the hour...it all went together perfectly and it just worked”. Amazed with its capabilities and with its applications, the two now incorporate 3D printed parts into other fixes: “a lot of things we see around here, we say ‘hey...maybe we can print that.’ It’s a great experience.”
