Designing a 3D Printed Tesla Turbine – Part 2

Introduction

This is the second installment of a two part series detailing the retrofitting of a machined Tesla Turbine with Markforged parts. In the first installment, we introduced Tesla Turbines, discussed which parts lent themselves well to 3D printing, and replaced the turbine housing with a Markforged part. Now, we’ll tackle the other printed component of our turbine retrofit: the bearing housing.

The Tesla Turbine Bearing Housing

While the turbine housing surrounds the shaft assembly, it does not touch it. Instead, an intermediary part called the bearing housing bolts onto the turbine housing and holds the shaft assembly with two perfectly concentric bearings. By cantilevering the rotors of the side the bearing housing, the original designers ensured that the machinist turning the original part could easily verify the concentricity of the bearing holes. This is critically important. At 24,000 rpm, any misalignment in the turbine rotors could lead to a catastrophic failure. In the aluminum housing (as it was originally machined), the tolerances for each of these bearing fits was +0/-.0004”. Extremely tight tolerances ensure that the press-fits sit well without being so tight that they impede the rotation of the bearing. While this part is manufacturable on a Markforged machine, it’s a much taller task than the turbine housing.

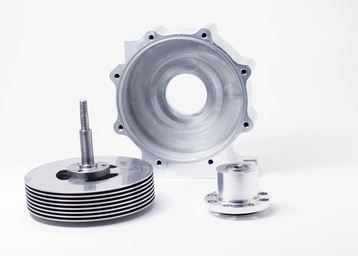

‍The bearing housing, pictured bottom right in this photo, holds the shaft/rotor assembly and screws onto the turbine housing.

Additive Manufacturing Design Alterations

While this part is definitely printable, it represents a significantly harder challenge than the turbine housing for a few reasons. First, the bearing fits must be precise and concentric; however, the tolerances can be slightly looser because of the decreased surface hardness of Onyx. This is a blessing in disguise, as hitting a +0/-.001” tolerance is much more realistic than what’s required for aluminum. Second, we needed to be able to print both retaining ring grooves and overhanging flanges precisely. These both required significant support material that could be removed from difficult-to-access areas without marring the part. Thankfully, our peel off supports allow retaining ring grooves and flanges to be easily printed. Third, we needed to fit significant fiber in the parts, especially around the bearings. If the part deformed, then any precision we achieved with bearing fits would be nullified. The part is large enough to fit six rings of fiber around each bearing; this is ample support.

‍The outer bearing fit of the bearing block, with six rings of fiber surrounding the bearing cavity.

Printing the Housing

Hitting tight tolerances is possible on all of our machines. To prove it, we decided to print two versions of the bearing housing: one on the Mark Two Enterprise and one on the Mark X with laser dimensional verification.

Mark Two Housing

To print tight tolerances on the Mark Two, we have to use independently measured unit tests. We’ve covered unit tests explicitly in a previous blog post; they’re incredibly useful in allowing us to print tight tolerances without a closed loop design. For the bearing housing, we abstract each of the two bearing fits to rings and print multiple unit tests. After each unit test prints, we measure the internal diameter as accurately as possible (measuring internal 3D printed circles with calipers can be quite difficult) and adjust our part dimensions in CAD. After iterating twice with each bearing fit, we incorporate each new dimension into the full part and print it. Only after measuring and validating the full part do we attempt to insert the hardware. If everything works according to plan, the bearings press-fit snugly and we’re able to install the bearing housing onto the turbine housing.

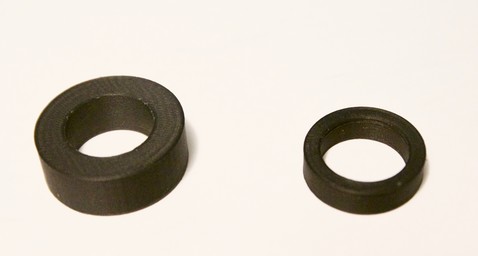

‍Two unit tests printed to test bearing fit on the large bearing cavity.

Mark X Housing

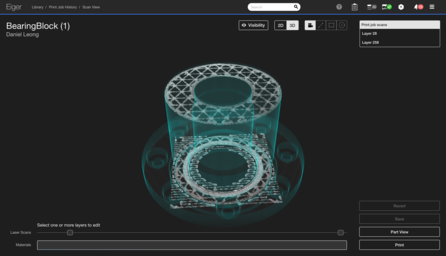

‍A 3D view of both laser scans.

Because dimensional assurance on the Mark X is still human validated, we cannot simply print out a perfect part. However, the laser dimensioning greatly streamlines our process. Instead of using unit tests (which while great, still run the risk of not verifying tolerance because the unit test with in-tolerance dimensions still needs to be replicated), we print the whole part with a laser scan on layers that contain each of the two critical bearing fits. This allows us to verify each of the bearing fits during the the print without having to use calipers. While we managed to hit both tolerances on the first try (precluding the necessity of a reprint), missing either tolerance would have resulted in a simple re-dimension and reprint. This workflow is hands-off and much simpler than using unit tests.

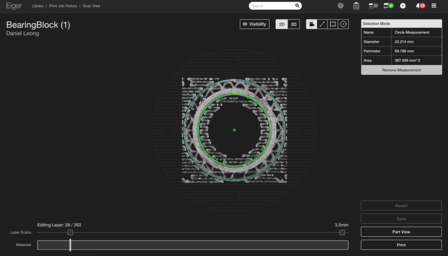

‍A dimensioned scan shows that the circular cavity is well within tolerance (the cavity is supposed to be 22.225 mm).

Conclusion

While complex, the bearing housing proved to be a great application of tight-tolerance 3D printing. We validated that we could print a functional part with few design changes on both the Mark Two and the Mark X. Better yet, the housings work interchangeably; both allow the turbine rotor to spin flawlessly.

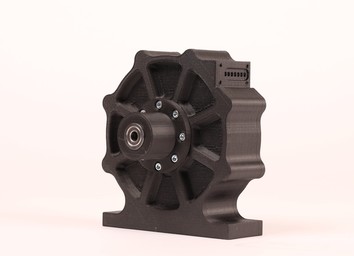

‍The final Tesla Turbine, with printed bearing housing screwed onto the turbine housing.

Want to see more applications of Markforged machines like this? Follow us on FacebookTwitterInstagram, and Linkedin for more updates!

Daniel Leong
January 17, 2017
